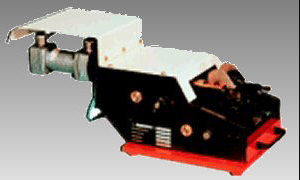

Cutting and bending machine
type C 034

for loose or taped axial components

Specification



- Dimensions

200 x 200 x 280 mm

- Wight

approx. 7 kg

- Commpressed air

4 bis 6 bar

- Min. pitch

C 034 S: 12,5 mm, C 034 MIL: 7,5 mm

- Max. pitch

C 034 S: 100 mm, C 034 MIL: 100 mm

- Wire Ø

C 034 S: 0,8 - 1,4 mm, C 034 MIL: 0,4 - 0,8 mm

- Components

loosen or tapep (manually input)

- Operation

manual per pneumatical foot switch

- Performance

2.500 components/h

Specification



- Dimensions

300 x 500 x 210 mm

- Wight

approx. 13 kg

- Compressed air

4 bis 6 bar

- Min. pitch

C 042: 10 mm, C 042/S: 12,5 mm

- Max. pitch

C 042: 70 mm, C 042/S: 70 mm

- Wire Ø

C 042: max.0,8 mm, C 042/S: max. 1,3 mm

- Componetns

loosen or taped

-Operation

manual per pneumatical foot switch

- Performance

2.500 components/h

Cutting, forming and bending machine type C 042

for loose or taped axial components

Specification



- Dimension

600 x 480 x 450 mm

- Weight

approx. 55 kg

- Connection

230 V / 50 Hz / 200 W

- Bent component

horizontal and vertical bending form

- Min. pitch

horizontal bending form: 7,5 mm
vertikal bending form: 2,5 mm

- Max. pitch

horizontal bending form: 50 mm
vertikal bending form: 5 mm

- Wire Ø

horizontal bendingform: 0,4 - 1,3 mm
vertikal bending form: till 0,8 mm

- Components

taped

- Performance

8.000 components/h (variable speed)



Optional

 - Mounting kit for horizontal axial components

   (B mounting kit)

 - Component centering

 - Component guidance für components smaller 58mm

 - Manual feed for loose components

 - Digital display for cutting length and pitch
 - Preselection and quantity counter
 - Dispenser for standard tape reels or ammo pack

Cutting, forming and bending machine type C 043 E

for loose or taped axial components

Specification



- Dimension

 600 x 480 x 450 mm

- Weight

approx. 45 kg

- Connection

230 V / 50 Hz / 200 W

- Compressed air

6 bar

- Bent part

horizontal bending form

- Min. pitch

7,5 mm

- Max. pitch

50 mm

- Wire Ø

0,4 bis 1,3 mm

- Components

taped

- Performance

max 3.600 components /h (variable speed)



Optional

 - Manual feed for loose compontents (horizontal bending form)
 - Precelection and quantity counter
 - Dispnser for standard taped reels or ammo pack

Cutting, forming and bending machine
type C 043ES

for taped axial components

Specification



- Dimension

200 x 480 x 200 mm

- Weight

approx. 14 kg

- Compressed air

5 - 6 bar

- Pitch

min. 2,54 mm, max. 5,08 mm

- Body Ø

min. 2 mm, max. 8 mm

- Body length

min. 4 mm, max. 10 mm

- Wire Ø

C 044: 0,4 mm - 0,8 mm, C 044 S: 0,9 mm - 1,4 mm

- Components

loose or taped  (manual input)

- Operation

manual per pneumatical foot switch

Cutting, forming and bending machine type C 044

for axial horizontal components

Specification



- Dimension

280 x 140 x 120 mm

- Weight

approx. 4 kg

- Compressed air

 6 bar

- Pitch dimension

2,5 mm - 30 mm

- Wire Ø
0,4 mm - 1,0 mm

- Cutting length

tool-specific

- Bending length bending form

tool-specific

- Operation

manual per pneumatic foot switch

Universal cutting and bending machine type C 055S


for loose axial or radial components
