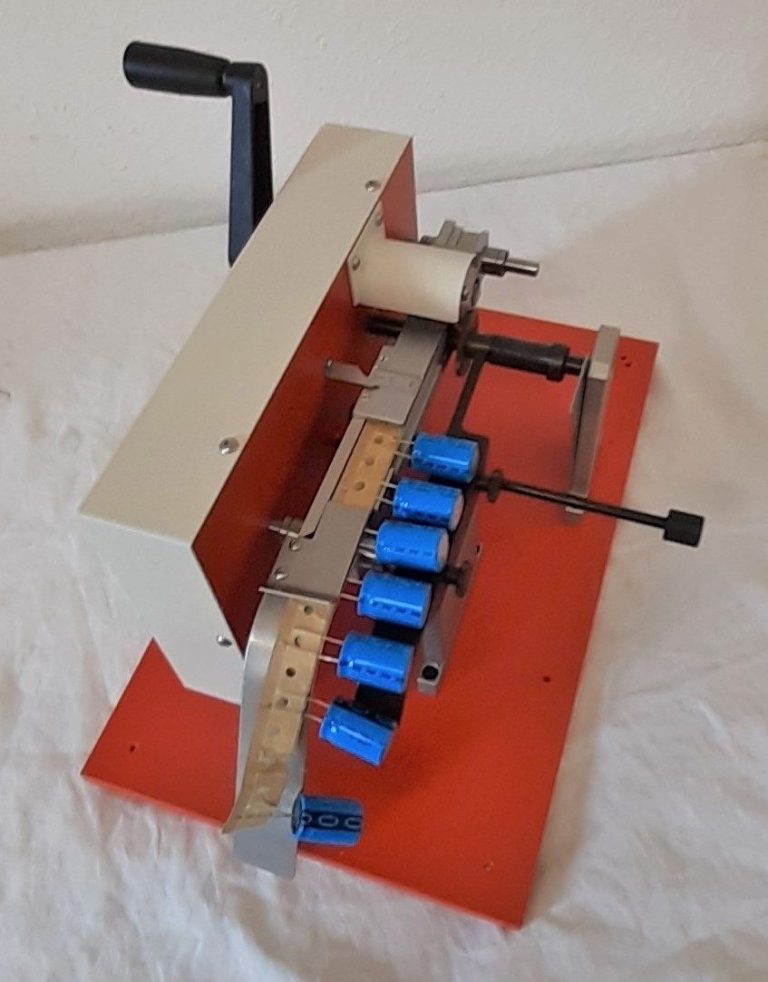

Cutting machine
type C066 H
Specification
- Dimensions
103 x 225 x 240 mm
- Weight
approx. 2 kg
- Grid dimensions component
any
- Grid dimensions belt hole
12,7 mm and 15 mm
- Wire Ø
max. 0,8 mm
- Cutting length
from 2,5 mm
- Component diameter
max. 12 mm
- Operation
Via hand crank
Optional
- Combined receptacle for role or ammopack
for radial taped components
Cutting machine
type C066 H XL
Specification
- Dimensions
103 x 225 x 240 mm
- Weight
approx. 8 kg
- Grid dimensions component
any
- Grid dimensions belt hole
12,7 mm und 15 mm
- Wire Ø
max. 1,0 mm
- Cutting length
from 2,5 mm
- Component diameter
max. 18 mm
- Operation
Via hand crank
Optional
- Combined receptacle for role or ammopack
for radial taped components

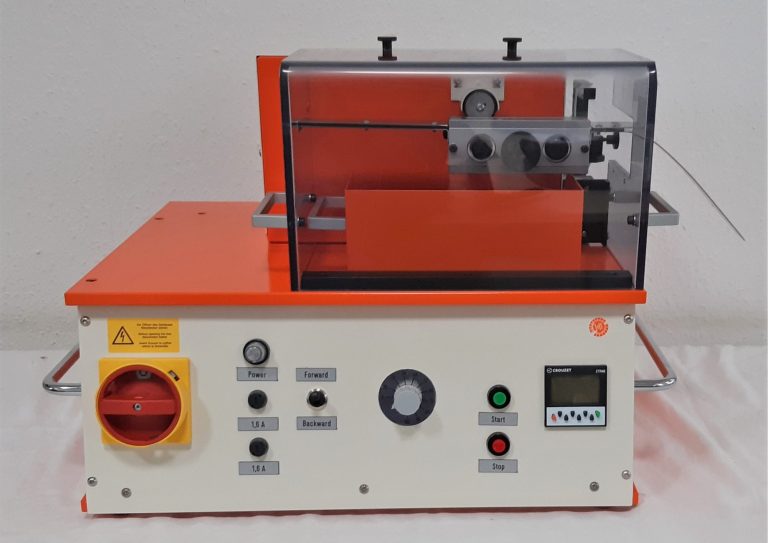

Cutting machine
type C066 M
Specification
- Dimensions
510 x 330 x 380 mm
- Weight
approx. 27 kg
- Connection
230 V / 50 Hz / 100 W
- Grid dimensions component
any
- Grid dimensions belt hole
12,7 mm and 15 mm
- Wire Ø
max. 0,8 mm
- Cutting length
from 2,5 mm
- Component diameter
max. 12 mm
- Operation
via motor (infinitely variable)
- Performance
35.000 Components/h.
Optional
- Preset and piece counter
- Combined receptacle for role or ammopack
for radial taped components
Cutting machine
type C066 M XL
Specification
- Dimensions
510 x 330 x 380 mm
- Weight
approx. 27 kg
- Connection
230 V / 50 Hz / 100 W
- Grid dimensions component
any
- Grid dimensions belt hole
12,7 mm and 15 mm
- Wire Ø
max. 0,8 mm
- Cutting length
from 2,5 mm
- Component diameter
max. 18 mm
- Operation
via motor (infinitely variable)
- Power
35.000 Components/h.
Optional
- Preset and piece counter
- Combined receptacle for role or ammopack
for radial taped components

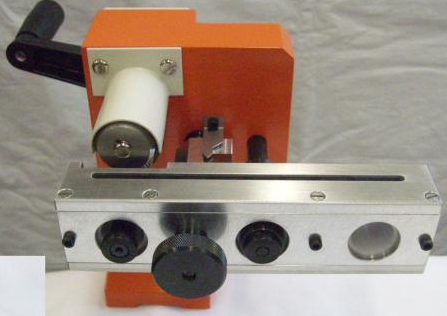

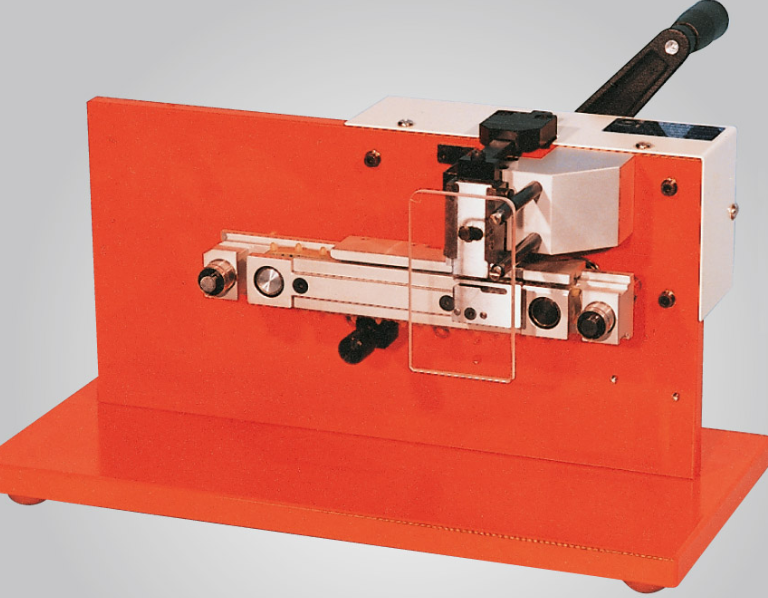

Cutting machine
type C066 HA
Specification
- Dimensions
400 x 170 x 190 mm
-Weight
approx. 7 kg
- Grid dimensions component
any
- Grid dimensions belt hole
12,7 mm or 15 mm
- Wire Ø
max. 0,8 mm
- Cutting length
from 2,5 mm
- Operation
Via hand crank
Optional
- Combined receptacle for role or ammopack
for radially taped components and probing tool for eliminating belt tolerances

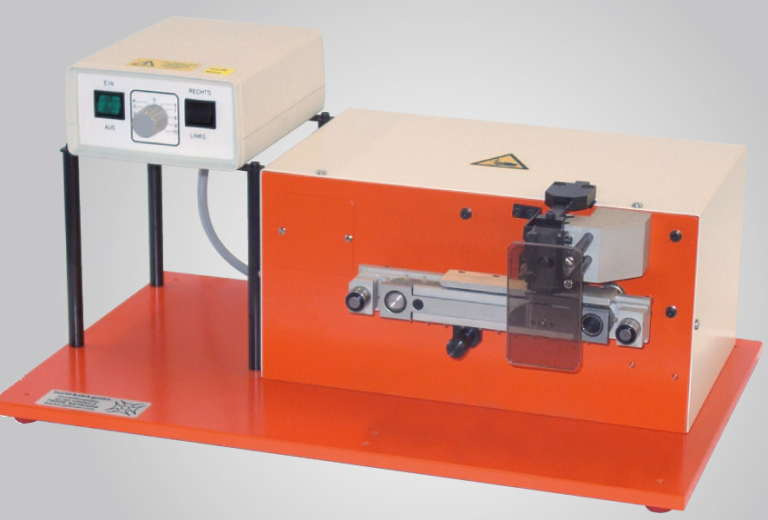

Cutting machine
type C066 MA
Specification
- Dimensions
560 x 320 x 350 mm
- Weight
approx. 14 kg
- Connection
230 V / 50 Hz / 100 W
- Grid dimensions component
any
- Grid dimensions belt hole
12,7 mm or 15 mm
- Wire Ø
max. 0,8 mm
- Cutting length
from 2,5 mm
- Operation
via motor (infinitely variable)
- Performance
5.000 Components/h.
Optional
- Combined receptacle for role or ammopack
for radially taped components and probing tool for eliminating belt tolerances

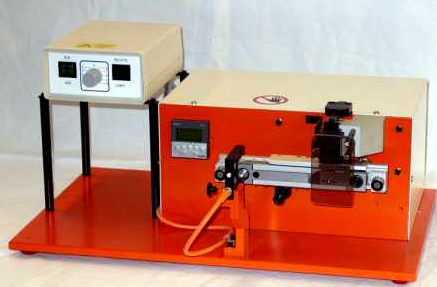

Cutting machine
type C066 MA-Z
Specification
- Dimensions
560 x 320 x 350 mm
- Weight
approx. 14 kg
- Connection
230 V / 50 Hz / 100 W
- Grid dimensions component
any
- Grid dimensions belt hole
12,7 mm or 15 mm
- Wire Ø
max. 1,0 mm
- Cutting length
from 2,5 mm
- Components
taped
- Operation
via motor (infinitely variable)
- Performance
5.000 Components/h
Optional
- Combined receptacle for role or ammopack
for radially taped components and probing tool for eliminating the belt tolerances and with component counter.

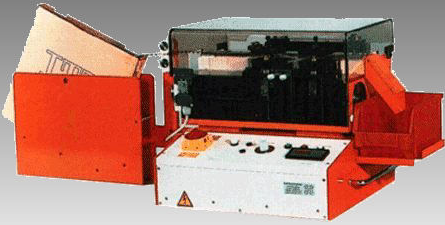

Cutting and bending machine
type C 069 G (on request)
Specification
- Dimensions
1100 x 550 x 500 mm
- Weight
approx. 60 kg
- Connection
230 V / 50 Hz / 250 W
- Compressed air
6 bar
- Execution
Tool double station (bending up and down possible)
- Grid dimensions
2,54; 5,08; 7,62 mm
- Wire Ø
max. 0,8 mm
- Operation
via motor (infinitely variable)
- Component delivery form
Roll or ammo pack
- Component delivery mold
loose as bulk material
- Performance
3.500 Components/h
Optional
- preselection and piece counter
- belt chopper
- Combined receptacle for role or ammopack
for taped radial components with probing tool to eliminate the belt tolerances

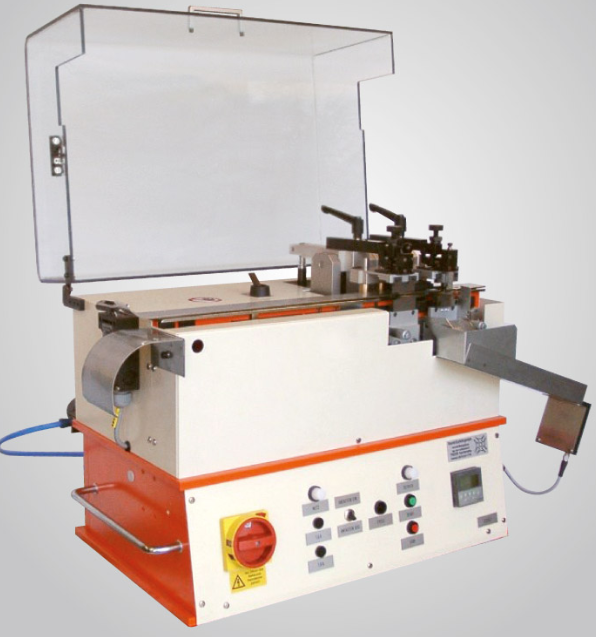

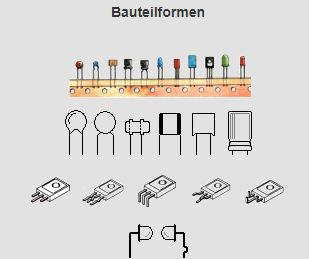

Cutting, forming and bending machine type C092
Specification
- Dimensions
650 x 450 x 500 mm
- Weight
approx. 52 kg
- Connection
115 V - 230 V / 50 Hz / 110 W
- Control
Siemens SPS S7-1200
- Compressed air
6 bar
- Component grid dimensions
min: 2.5 mm, max.: depending on shape
- Belt grid
12,7 mm und 15 mm
- Wire Ø
0,4mm - 0,8 mm
- Components
taped
- Component delivery form
Roll or ammo pack
- Component delivery mold
loose as bulk material
- Performance
with probing max. 3,000 components/h
without probing max. 4,000 components/h
Optional
- Unwinding stand for all commercially available belt reels
- Combined receptacle for role or ammopack
- electronic counter, which is activated when the preselected
number of pieces the machine switches off automatically.
- Belt chopper
with probing tool to eliminate belt tolerances for taped, radial components
Specification
- Dimensions
650 x 450 x 500 mm
- Weight
approx. 35 kg
- Connection
115 V - 230 V / 50 Hz / 110 W
- Control
Siemens-SPS S7-1200
- Compressed air
6 bar
- Component grid dimensions
min. 2,5 mm; max. 7,62 mm
- belt hole grid
12,7 mm und 15 mm
- Wire Ø
0,4mm - 0,8 mm
- Components
taped
- Component delivery form
Roll or ammo pack
- Component delivery mold
loose as bulk material
- Performance
3.600 BE/h
Optional
- Component centering
- Belt chopper
- Combined receptacle for role or ammopack
Cutting and bending machine
type C093
with reverse polarity protection tool for taped capacitors and diodes

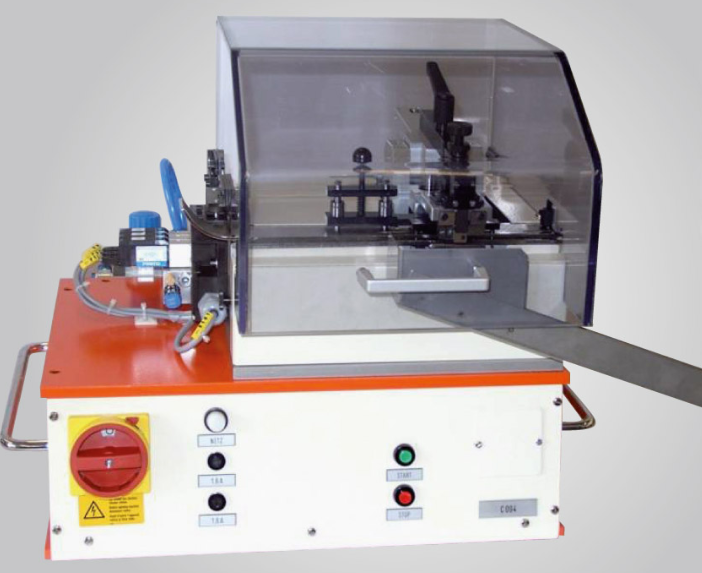

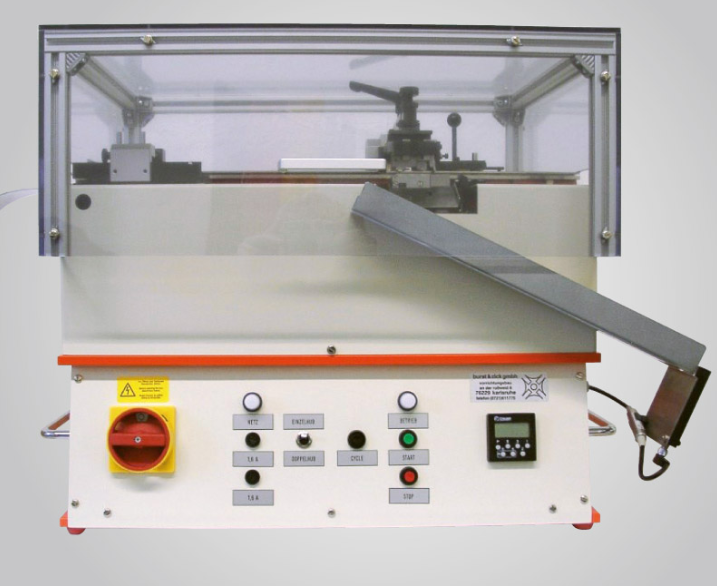

Cutting and bending machine
type C094
Specification
- Dimensions
500 x 400 x 500 mm
- Weight
approx. 20 kg
- Connection
115 V - 230 V / 50 Hz / 110 W
- Control
Siemens SPS S7-1200
- Compressed air
6 bar
- Component grid dimensions
min: 2.5 mm, max.: depending on shape
- belt grid
12,7 mm and 15 mm
- Wire Ø
0,4 mm - 0,8 mm
- Components
taped
- Component delivery form
Roll or ammo pack
- Component delivery mold
loose as bulk material
- Performance
max. 4,000 components/h
Optional:
- Electronic counter, which automatically switches off the machine after reaching the preselected number of pieces is reached
for taped radial components
Cutting machine
type C095
Specification
- Dimensions
500 x 400 x 450 mm
- Weight
approx. 20 kg
- Connection
115 V - 230 V / 50 Hz / 110 W
- Control
Siemens SPS "LOGO"
- Compressed air
6 bar
- Component grid dimensions
min: 2,5 mm, max.: 10 mm
- belt grid
12,7 mm and 15 mm
- Wire Ø
0,4 mm - 0,8 mm
- Components
taped
- Component delivery form
Roll or ammo pack
- Component delivery mold
loose as bulk material
- Performance
5,000 components/h
Optional
- Electronic counter, which automatically switches off the machine after reaching the preselected number of pieces is reached
- Combined receptacle for role or ammopack
for taped radial components
