Specification
- Dimensions
350 x 200 x 100 mm
- Weight
approx. 15 kg
- Compressed air
6 bar
- Grid dimensions
min. 3,5 mm (2,5 mm on request)
max. 25 mm
- Wire Ø
max. 0,8 mm
- Operation
via pneumatic foot switch
Cutting and embossing machine
type C052 B
for loose radial components
Specification
- Dimensions
300 x 130 x 120 mm
- Weight
approx. 3 kg
- Compressed air
6 bar
- Grid dimensions
2,5 mm und 2,54 mm
- Grid field
13 x 21 holes for connector strips; round grid for operational amplifiers and transistors; and side slots for cutting components with long leads.
- Wire Ø
0,4 mm - 0,8 mm
- Cutting length
standard 3 mm (other dimensions on request)
- Operation
via pneumatic foot switch
- Performance
2.000 BE/h
- Optional
Special hole patterns on request
Cutting machine
type C053
for loose radial components
Specification
- Dimensions
280 x 140 x 120 mm
- Weight
approx. 1,5 kg
- Grid field
13 x 21 holes
- Grid bores
TO 18/TO 92/TO 5: 2.54 x 1.27 mm; 5.08 x 2.54 mm; 7.62 x 5.08 mm Circular grid for operational amplifiers with 8 and 10 connecting wires; and lateral slot for cutting components with long connecting wires.
- Wire Ø
up to 1,0 mm
- Cutting length
standard 3 mm (other dimensions on request)
- operation
by hand
-Optional
-Special hole patterns on request.
Cutting machine
type C055 H
for loose radial components
Specification
- Dimensions
280 x 140 x 120 mm
- Weight
approx. 1,5 kg
- Compressed air
6 bar
- Grid field
13 x 21 holes
- Grid holes
TO 18/TO 92/TO 5: 2.54 x 1.27 mm; 5.08 x 2.54 mm; 7.62 x 5.08 mm Circular grid for operational amplifiers with 8 and 10 leads; and side slot for cutting components with long leads.
- Wire Ø
to 1,0 mm
- Cutting length
standard 3 mm (other dimensions on request)
- Operation
via pneumatic foot switch or manual release
- Note
a maximum of 8 component legs can be cut simultaneously
- Special hole patterns
on request
Cutting machine
type C055 P
for loose radial components
Specification
- Dimensions
280 x 140 x 120 mm
- Weight.
approx. 1,5 kg
- Compressed air
6 bar
- Grid dimensions
2,5 mm bis 30 mm
- Wire Ø
0,4 mm to 1,0 mm
- Cutting length
tool-specific
- Bending length -shape
tool-specific
- Operation
via pneumatic foot switch
Universal cutting and bending machine type C055 S
for loose axial or radial components
Specification
- Dimensions
420 x 200 x 80 mm
- Weight
approx. 3,5 kg
- Compressed air
6 bar
- Grid dimensions
2,5 mm and 2,54 mm
- Grid field
13 x 21 holes for connector strips; round grid for operational amplifiers and transistors; and side slot for cutting components with long leads.
- Wire Ø
0.8 mm to mx. 1.3 mm (larger Ø on request)
- Cutting length
Standard 3 mm (other dimensions on request)
- Operation
via pneumatic foot switch
- Performance
2.000 BE/h
- Special hole patterns
on request
Optional
the C057 is also available with cutting length adjustment
from 3-25 mm available type C057 SLV
Cutting machine
type C057
for loose radial components with optional cutting length adjustment
Specification
- Dimensions
420 x 200 x 180 mm
- Weight
approx. 3,5 kg
- Compressed air
6 bar
- Grid dimensions
2,5 mm and 2,54 mm
- Grid field
13 x 21 holes for connector strips; round grid for operational amplifiers and transistors; and side slot for cutting components with long leads.
- Wire Ø
0.8 mm to mx. 1.3 mm (larger Ø on request)
- Cutting length
3 mm - 25 mm
- Operation
via pneumatic foot switch
- Performance
2.000 BE/h
- Special hole patterns
on request
Cutting machine
type C057 SLV
for loose radial components with optional cutting length adjustment
Spezifikation
- Dimensions
380 mm x 430 mm x 270 mm
- Wight
ca. 19 kg
- Connection
230 V / 50 Hz / 180 W
- Control
Three-phase motor
- Component grid dimensions
max. 25mm
- Cutting length
3,0 mm - 25 mm
- Wire Ø
maximal 0,8 mm
- Components
loose
- Component delivery form
loose
- Component delivery mold
loose as bulk material
-Performance
1.200 BE/h
Cutting maschine
type C076
for loose radial components
Specification
- Dimensions
780 x 230 x 110 mm
- Weight
approx. 24 kg
- Compressed air
6 bar
- Wire Ø
Ø on demand
- Cutting length
Standard 3 mm (other dimensions on request)
- Operation
via pneumatic foot switch
- Performance
2.000 BE/h
- Cutting plate
Holes on request

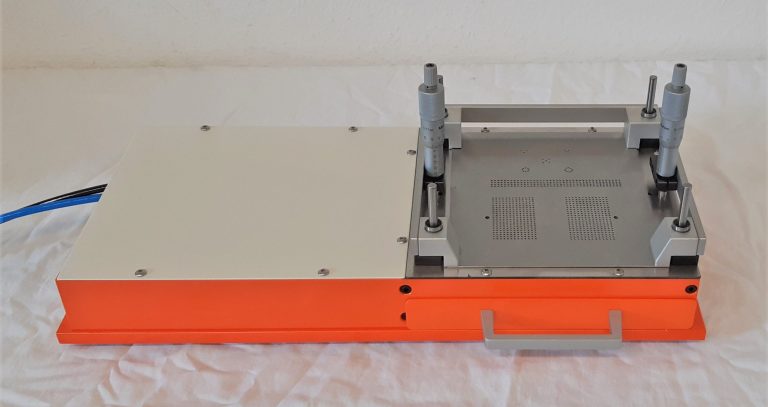

Cutting machine
type C058
for loose radial components
Exemplary cutting blate
